PM Step Motors
PM Liner Step Motor
Main applications: Printers, engraving machines, medical equipment, stage lighting and textile machinery.

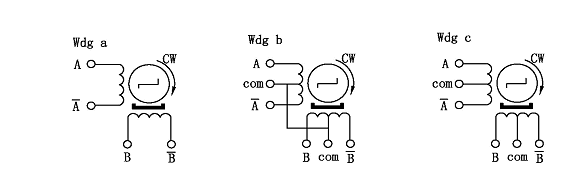

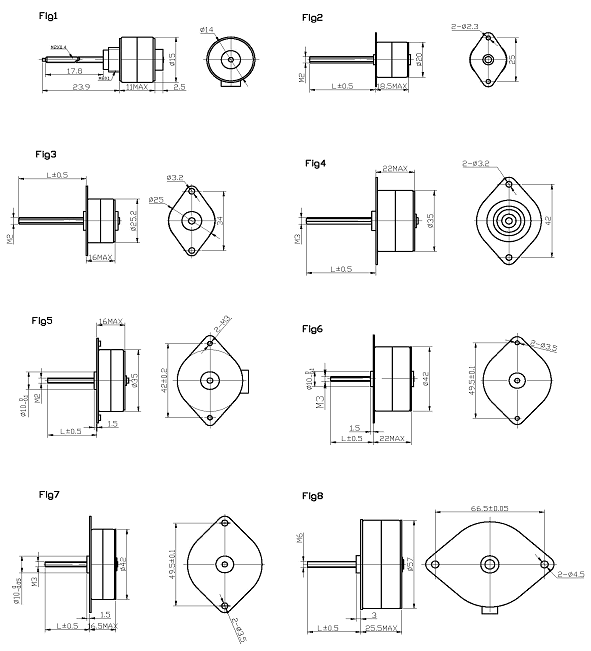

| Model | Step Angle | Phase | Volt (V) | Curr (A) | Res (Ω) | Ind (mH) | Hold Torque | Pull-in Torque | Detent Torque | Lends | Wdg | Fig |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15BYZ-01 | 18 | 2 | 12 | 0.07 | 170 | - | 40 | 5(at 500Hz) | 16 | UL1571 30AWG | a | 1 |
| 20BYZ-01 | 18 | 2 | 5 | 0.5 | 10 | - | 60 | 10(at 200Hz) | 20 | - | a.c | 2 |
| 25BY48Z-01 | 7.5 | 4 | 5 | 0.5 | 10 | - | 120 | 40(at 100Hz) | 45 | UL1061 28AWG | a.b | 3 |
| 25BY24Z-01 | 15 | 4 | 9 | 0.45 | 20 | - | 135 | 20(at 200Hz) | 60 | UL1061 28AWG | a.b | 3 |
| 35BY48LZ-01 | 7.5 | 4 | 12 | 0.2 | 60 | - | 520 | 50(at 200Hz) | 125 | UL1007 26AWG | b | 4 |
| 35BY24LZ-01 | 15 | 4 | 24 | 0.28 | 85 | - | 450 | 110(at 100Hz) | 125 | UL1007 26AWG | b | 4 |
| 35BY48SZ-01 | 7.5 | 4 | 5 | 0.71 | 7 | - | 450 | 60(at 200Hz) | 75 | UL1007 26AWG | b | 5 |
| 42BY48LZ-01 | 7.5 | 4 | 12 | 0.18 | 70 | - | 500 | 60(at 200Hz) | 125 | UL1007 26AWG | b | 6 |
| 42BY48SZ-01 | 7.5 | 4 | 12 | 0.3 | 40 | - | 550 | 70(at 200Hz) | 100 | UL1007 26AWG | b | 7 |
| 57BY48Z-01 | 7.5 | 4 | 12 | 0.6 | 21 | - | 1500 | 320(at 100Hz) | 425 | UL1007 26AWG | a.c | 8 |
