PM Step Motors
35 BYZ series PM step motor
Main applications: Printers, engraving machines, medical equipment, stage lighting and textile machinery.

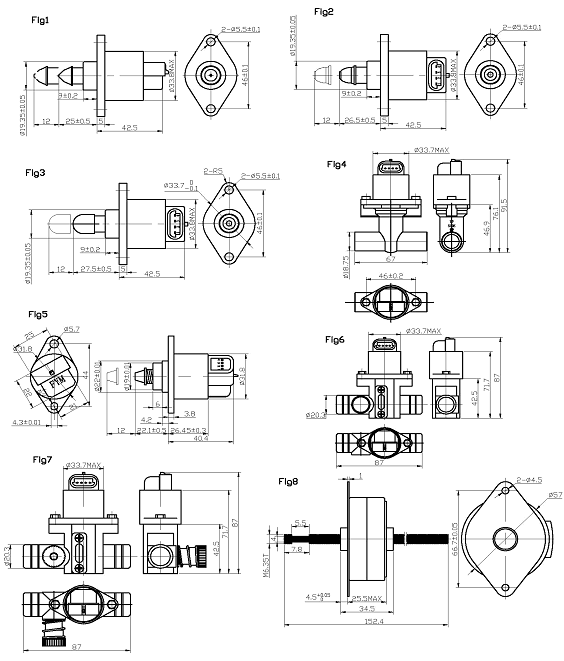

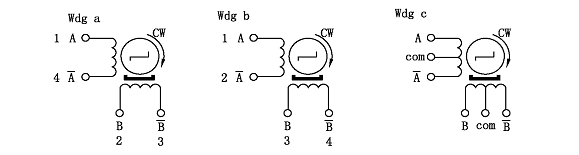

| Model | Step Angle | Phase | Volt (V) | Curr (A) | Res (Ω) | Ind (mH) | Step Avail (mm) | Push Torque (N) | Journey (mm) | Lends | Wdg | Fig |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 35BY42Z01A-02 | 15 | 2 | 12 | 0.23 | 53 | - | 0.0417 | 25 | 12 | - | a | 1 |
| 35BY42Z01B-09 | 15 | 2 | 12 | 0.23 | 53 | - | 0.0417 | 25 | 12 | - | a | 2 |
| 35BY42Z01B-10 | 15 | 2 | 12 | 0.23 | 53 | - | 0.0417 | 25 | 12 | - | a | 3 |
| 35BY42Z01B-10T | 15 | 2 | 12 | 0.23 | 53 | - | 0.0417 | 25 | 12 | - | a | 4 |
| 35BY42Z01B-01TA | 15 | 2 | 12 | 0.23 | 53 | - | 0.0417 | 25 | 12 | - | a | 6 |
| 35BY42Z01B-01TB | 15 | 2 | 12 | 0.23 | 53 | - | 0.0417 | 25 | 12 | - | a | 7 |
| 35BY42Z02C-08 | 15 | 2 | 12 | 0.23 | 53 | - | 0.0417 | 25 | 12 | - | b | 5 |
| 57BYZ01-B01 | 15 | 4 | 12 | 0.48 | 25 | 29 | 0.025 | 31 | 130 | - | c | 8 |
| 20BY20L014 | 18 | 4 | 12 | 0.4 | 30 | 55 | 7.5 | 0.6 | UL1571 28AWG | c | 3 | |
| 20BY20Y-02 | 18 | 2 | 5 | 0.33 | 15 | 50 | 10 | 0.6 | UL1095 28AWG | a | 4 | |
| 20BYUAG2 | 18 | 4 | 12 | 0.07 | 170 | 35 | 7.5 | 0.6 | UL2651 28AWG | b | 5 |
