PM DC Motors

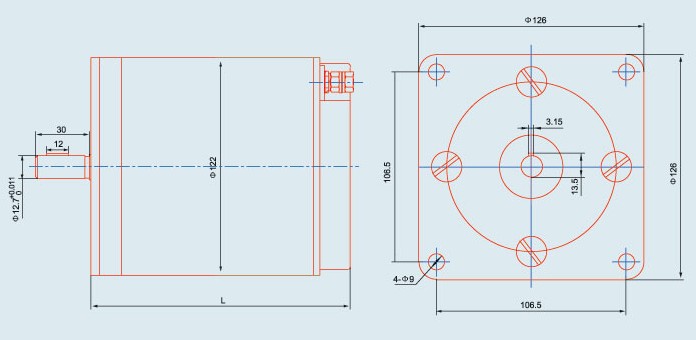

120 ZYT series DC Motor
Main applications: Printers, engraving machines, medical equipment, stage lighting and textile machinery.
| Model | Terminal Voltage (VDC) | No Load Amps | No Load RPM | Rated Load Torque (N·m) | Rated Load Amps | Rated Load RPM | Body Length (mm) |
|---|---|---|---|---|---|---|---|
| 120ZYT002 | 12 | - | - | 1.2 | 12.0 | 780 | 145 |
