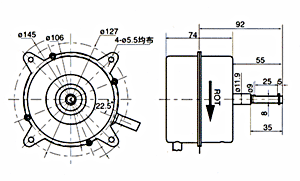

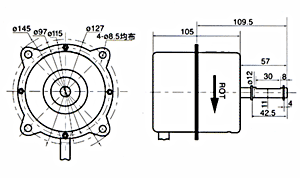

094 PSC series AC Motor
Main applications: Household appliances, fans, pumps, and small machinery. Frame size: Φ80~Φ139 PSC (permanent split capacitor) motor used in fan and ventilation.
| Model | Voltage (V) | Frequency (Hz) | Nominal Output Power (W) | Current (A) | Rated Speed (r/min) | Capacitor (μF/V) |
|---|---|---|---|---|---|---|
| YYF94-45-4D | 220 | 50 | 45 | 0.5 | 1400/1SP | 2µF/450V |
| YYF94-120-4D | 220 | 50 | 120 | 1.1 | 1400/1SP | 5µF/450V |
| YYF94-35-6D | 208-230 | 60 | 35 | 0.43 | 880/1SP | 2µF/450V |
| YYF94-15-4D | 230 | 50 | 15 | 0.18 | 1350/1SP | 1µF/200V |
| YYF94-25-4D | 200-220 | 50/60 | 25 | 0.30-0.38 | 1250/1500/1SP | 3µF/450V |
| YYF94-25-4D | 100 | 50/60 | 25 | 0.55/0.70 | 1250/1500/1SP | 10µF/250V |
| YYF94-30-6D | 208-230 | 60 | 30 | 0.4 | 820/1SP | 2µF/450V |
| YYF94-35-6D | 208-230 | 60 | 35 | 0.5 | 780/1SP | 2.5µF/450V |
| YYF94-20-6D | 220 | 50 | 20 | 0.2 | 850/1SP | 2µF/450V |
| YYF94-25-6D | 220 | 50 | 25 | 0.25 | 850/1SP | 2µF/450V |
