AC Motors

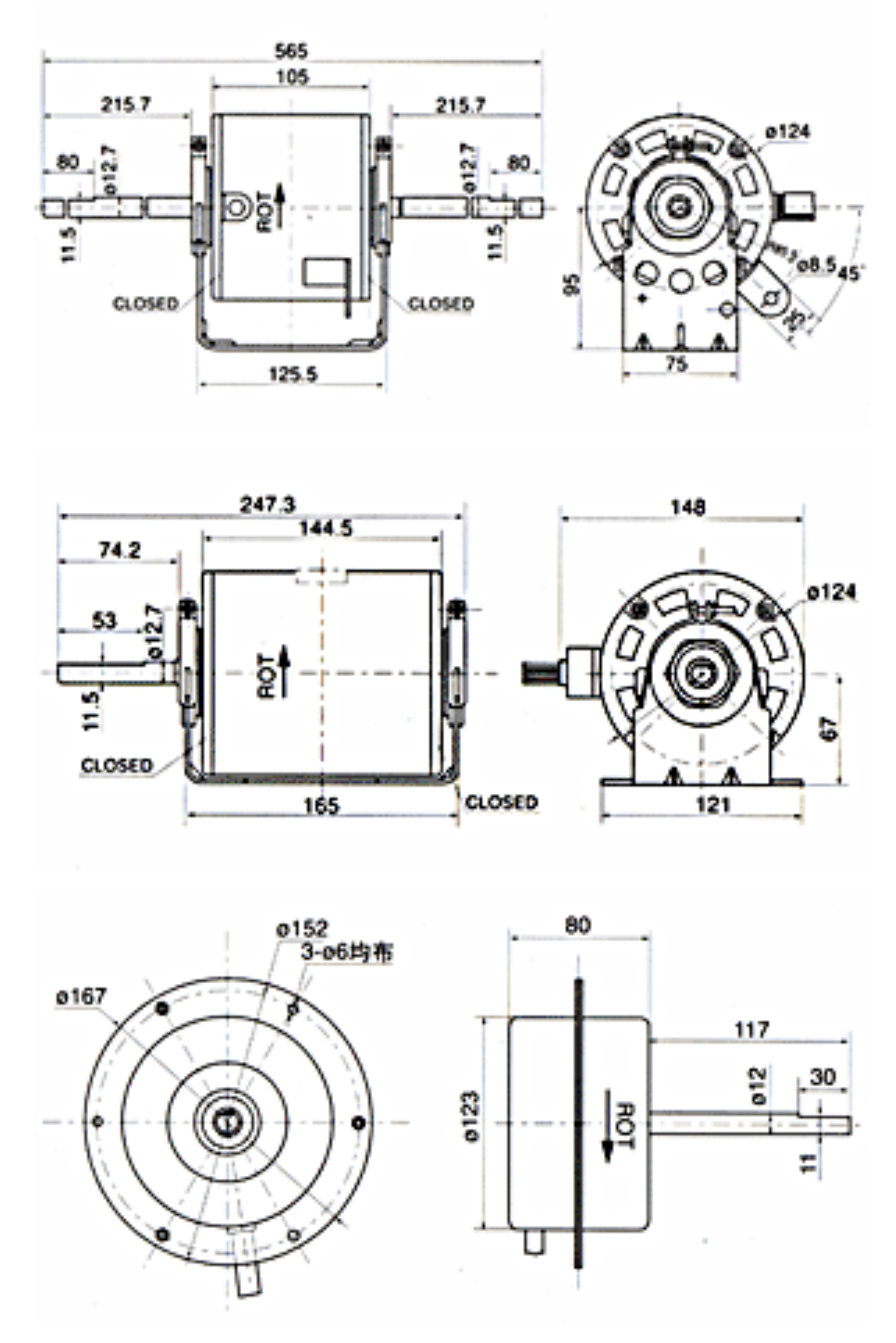

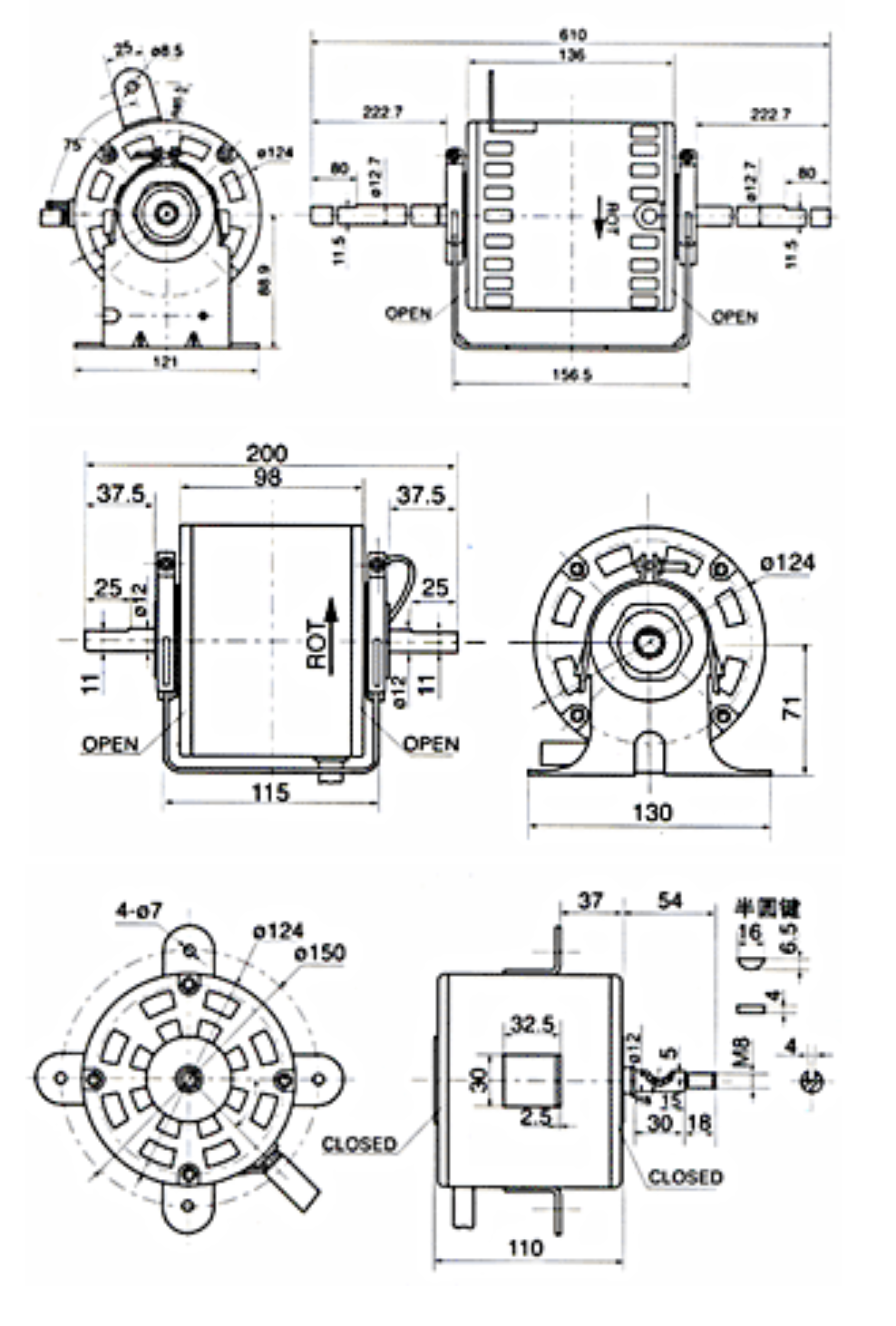

0120 PSC series AC Motor
Main applications: Household appliances, fans, pumps, and small machinery. Frame size: Φ80~Φ139 PSC (permanent split capacitor) motor used in fan and ventilation.
| Model | Voltage (V) | Frequency (Hz) | Nominal Output Power (W) | Current (A) | Rated Speed (r/min) | Capacitor (μF/V) |
|---|---|---|---|---|---|---|
| YYF120-50-4S | 220-240 | 50 | 50 | 0.5 | 1350/1SP | 3µF/450V |
| YYF120-100-4S | 220-240 | 50 | 100 | 1 | 1300/6SP | 3µF/450V |
| YYF120-180-4S | 220-240 | 50 | 180 | 1.4 | 1300/6SP | 4µF/450V |
| YYF120-210-4S | 220-240 | 50 | 210 | 1.6 | 1260/3SP | 5µF/450V |
| YYF120-370-4S | 220-240 | 50 | 370 | 3.2 | 1300/5SP | 10µF/450V |
| YYF120-100-4S | 220-240 | 50 | 100 | 0.8 | 1350/1SP | 3µF/450V |
| YYF120-150-4S | 220-240 | 50 | 150 | 1.3 | 1350/1SP | 6µF/450V |
| YYF120-125-4D | 220-240 | 50 | 125 | 1.36 | 1425/1SP | 5µF/450V |
| YYF120-90-4D | 220-240 | 50 | 90 | 0.8 | 1425/1SP | 4µF/450V |
| YYF120-80-4D | 220 | 50 | 80 | 1 | 1100/1SP | 5µF/450V |
| YYF120-120-4D | 220 | 50 | 120 | 1.2 | 1250/1SP | 5µF/450V |
| YYF120-80-4S | 220 | 50 | 80 | 0.8 | 1250/2SP | 4µF/450V |
| YYF120-120-4S | 220 | 50 | 120 | 1.1 | 1250/2SP | 5µF/450V |
| YYF120-180-4S | 220 | 50 | 180 | 1.7 | 1250/2SP | 8µF/450V |
| YYF120-35-6D | 220 | 50 | 35 | 0.33 | 900/4SP | 4µF/450V |
| YYF120-40-6D | 220 | 50 | 40 | 0.35 | 900/4SP | 4µF/450V |
| YYF120-40-4D | 220 | 50 | 40 | 0.37 | 1210/3SP | 4µF/450V |
| YYF120-90-4D | 230 | 50 | 90 | 0.95 | 1400/1SP | 4µF/450V |
| YYF120-120-4D | 230 | 50 | 120 | 1.1 | 1400/1SP | 5µF/450V |
| YYF120-180-4D | 230 | 50 | 180 | 1.5 | 1400/1SP | 6µF/450V |
| YYF120-250-4D | 230 | 50 | 250 | 2.2 | 1400/1SP | 6µF/450V |
