AC Motors

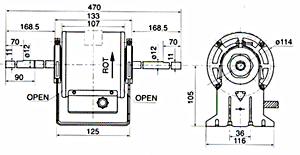

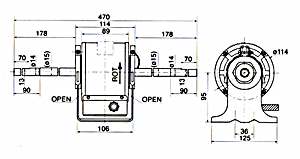

0110 PSC series AC Motor
Main applications: Household appliances, fans, pumps, and small machinery. Frame size: Φ80~Φ139 PSC (permanent split capacitor) motor used in fan and ventilation.
| Model | Voltage (V) | Frequency (Hz) | Nominal Output Power (W) | Current (A) | Capacitor (μF/V) |
|---|---|---|---|---|---|
| YYF110-8-4D | 220 | 50 | 8 | 0.17 | 1µF/450V |
| YYF110-16-4D | 220 | 50 | 16 | 0.26 | 1.5µF/450V |
| YYF110-12-4S | 220 | 50 | 12 | 0.23 | 1.5µF/450V |
| YYF110-16-4S | 220 | 50 | 16 | 0.26 | 1.5µF/450V |
| YYF110-18-4S | 220 | 50 | 18 | 0.29 | 1.5µF/450V |
| YYF110-20-4S | 220 | 50 | 20 | 0.31 | 2µF/450V |
| YYF110-22-4S | 220 | 50 | 22 | 0.34 | 2µF/450V |
| YYF110-25-4S | 220 | 50 | 25 | 0.39 | 2.5µF/450V |
| YYF110-30-4S | 220 | 50 | 30 | 0.42 | 2.5µF/450V |
| YYF110-32-4S | 220 | 50 | 32 | 0.44 | 2.5µF/450V |
| YYF110-35-4S | 220 | 50 | 35 | 0.48 | 2.5µF/450V |
| YYF110-40-4S | 220 | 50 | 40 | 0.56 | 2.5µF/450V |
| YYF110-50-4S | 220 | 50 | 50 | 0.56 | 4µF/450V |
| YYF110-60-4S | 220 | 50 | 60 | 0.64 | 4µF/450V |
| YYF110-80-4S | 220 | 50 | 80 | 1 | 5µF/450V |
| YYF110-8-6D | 220 | 50 | 8 | 0.15 | 0.8µF/450V |
| YYF110-12-6S | 220 | 50 | 12 | 0.18 | 1µF/450V |
| YYF110-16-6S | 220 | 50 | 16 | 0.23 | 1.2µF/450V |
| YYF110-20-6S | 220 | 50 | 20 | 0.27 | 1.5µF/450V |
| YYF110-25-S | 220 | 50 | 25 | 0.3 | 1.8µF/450V |
| YYF110-30-6S | 220 | 50 | 30 | 0.34 | 2µF/450V |
| YYF110-35-6S | 220 | 50 | 35 | 0.38 | 2µF/450V |
