EPB Series 2-Flute Ball End Mill

Solid carbide end mill — Type EP 2-flute ball end mill for general machining.

For ISO P, M and K materials below HRC 55, for both roughing and finishing — a complete range of sizes for general use.
End Type: Ball nose
Flutes: 2
Helix Angle: 35°
Coating: Al-series
Carbide Grade: UP4230
Shank: type A shank, h6 tolerance
Size Range: 1/16″–5/8″ cutting diameter, 11 sizes

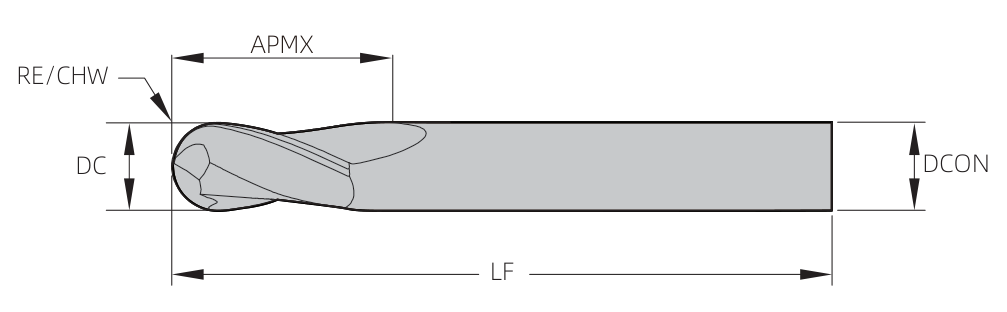

Model	Cutting Dia. DC (in)	Cutting Dia. DC (mm)	Shank Dia. DCON (in)	Overall Length LF (in)	Length of Cut APMX (in)	Flutes ZEFP	Ball Radius RE (in)
EPB-0062-2T	1/16	1.588	1/8	1-1/2	3/16	2	1/32
EPB-0078-2T	5/64	1.984	1/8	1-1/2	3/16	2	5/128
EPB-0093-2T	3/32	2.381	1/8	1-1/2	9/32	2	3/64
EPB-0109-2T	7/64	2.778	1/8	1-1/2	3/8	2	7/128
EPB-0125-2T	1/8	3.175	1/8	1-1/2	3/8	2	1/16
EPB-0187-2T	3/16	4.763	3/16	2	5/8	2	3/32
EPB-0250-2T	1/4	6.350	1/4	2-1/2	3/4	2	1/8
EPB-0312-2T	5/16	7.938	5/16	2-1/2	13/16	2	5/32
EPB-0375-2T	3/8	9.525	3/8	2-1/2	1	2	3/16
EPB-0500-2T	1/2	12.700	1/2	3	1	2	1/4
EPB-0625-2T	5/8	15.875	5/8	3-1/2	1-1/4	2	5/16
